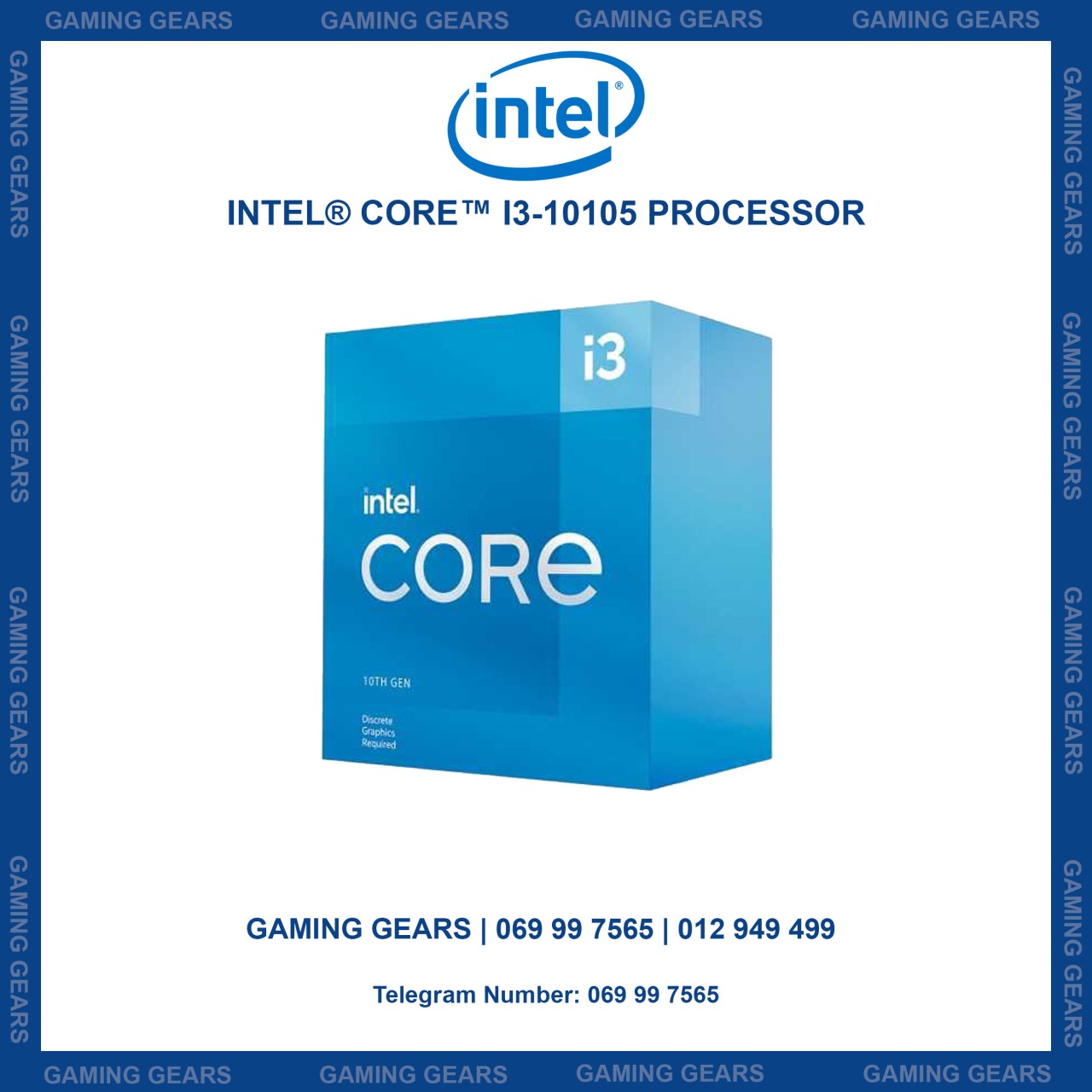

Intel® Core™ i3-10105 Processor

Intel® Core™ i3-10105 Processor

$149

Availability: In Stock

Quick Overview

CPU Specifications

# of Cores4
# of Threads8
Processor Base Frequency3.70 GHz
Max Turbo Frequency4.40 GHz
Cache6 MB Intel® Smart Cache
Bus Speed8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency^‡4.40 GHz
TDP65 W

Description

Supplemental Information

Embedded Options AvailableNo
DatasheetView now

Memory Specifications

Max Memory Size (dependent on memory type)128 GB
Memory TypesDDR4-2666
Max # of Memory Channels2
Max Memory Bandwidth41.6 GB/s
ECC Memory Supported ^‡No

Processor Graphics

Processor Graphics ^‡Intel® UHD Graphics 630
Graphics Base Frequency350 MHz
Graphics Max Dynamic Frequency1.10 GHz
Graphics Video Max Memory64 GB
4K SupportYes, at 60Hz
Max Resolution (HDMI)^‡4096 x 2160@30Hz
Max Resolution (DP)‡4096 x 2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡4096 x 2304@60Hz
DirectX* Support12
OpenGL* Support4.5
Intel® Quick Sync VideoYes
Intel® InTru™ 3D TechnologyYes
Intel® Clear Video HD TechnologyYes
Intel® Clear Video TechnologyYes
# of Displays Supported ^‡3
Device ID0x9BC8

Expansion Options

Scalability1S Only
PCI Express Revision3.0
PCI Express Configurations ^‡Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes16

Package Specifications

Sockets SupportedFCLGA1200
Max CPU Configuration1
Thermal Solution SpecificationPCG 2015C
T_JUNCTION100°C
Package Size37.5mm x 37.5mm
