ASUS ROG Thor 1200W Platinum III Hatsune Miku Edition
Pre-Order
Quick Overview
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC build
- Co-branded edition combines unbeatable ROG performance and sci-fi-inspired aesthetics with the signature blue-green and pink Hatsune Miku color scheme
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

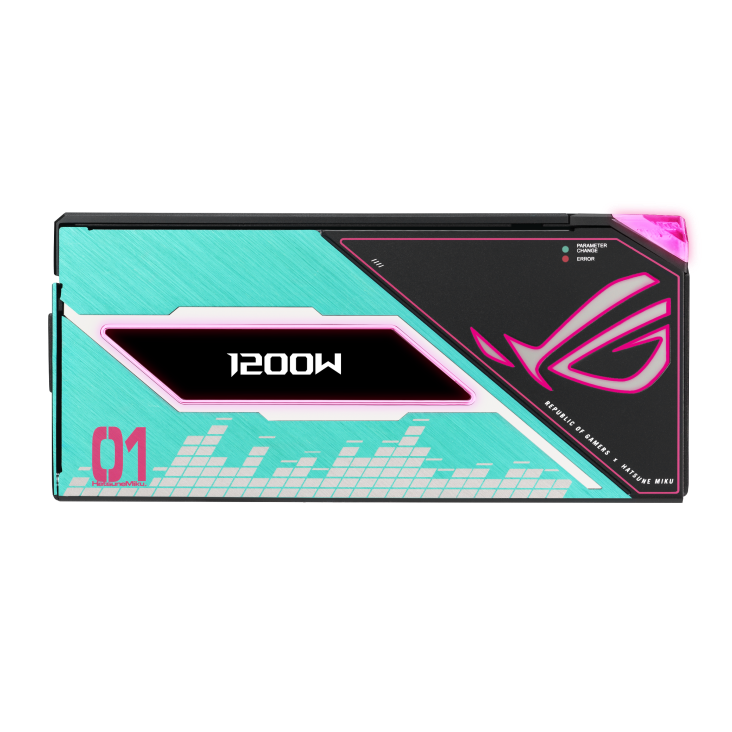

- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Platinum III Hatsune Miku Edition is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Lambda A++ Certification: Certified low noise levels, below 15 dB.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 80 PLUS & Cybenetics Platinum certified: ROG Thor III Hatsune Miku Edition utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
Model
ROG Thor 1200W Platinum III Hatsune Miku Edition
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 100A 0.3A 3A
Combined Load
125W 125W 1200W 3.6W 15W
Total Output
1200W

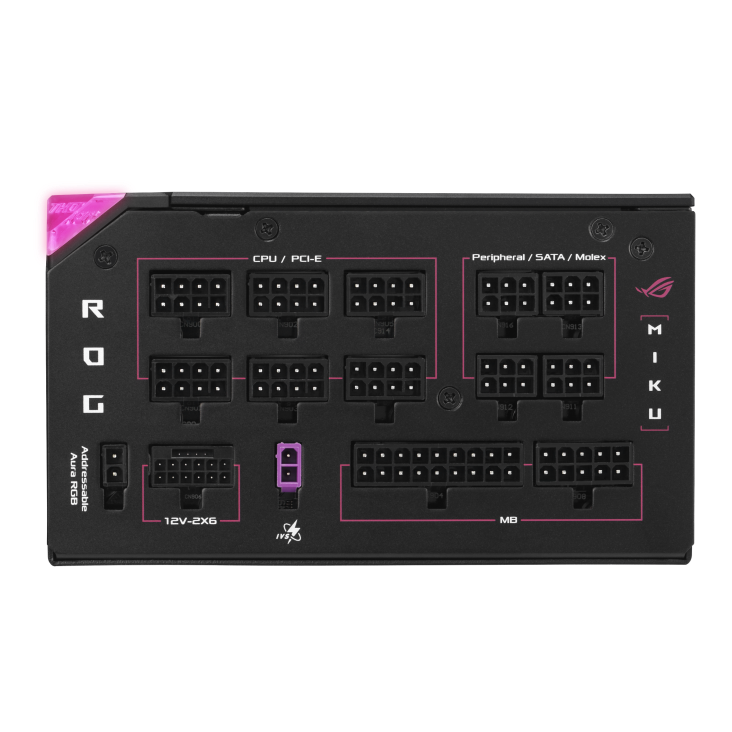

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
PERIPHERAL x 6
Package Contents
Power cord x 1
Motherboard power cable x 1 (610mm)
CPU cable x 2 (1000mm)
PCI-E Gen 5 16-pin cable x 1 (750mm)
PCI-E cable 1-to-1 x 4 (750mm)
SATA cable 1-to-4 x 1 (400+120+120+120mm)
SATA cable 1-to-3 x 1 (400+120+120mm)
Peripheral cable 1-to-3 x 2 (400+150+150mm)
Addressable RGB cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis screws package x 1
Cable tie x 12
Thank you card x 1
User manual x 1
Motherboard power cable x 1 (610mm)
CPU cable x 2 (1000mm)
PCI-E Gen 5 16-pin cable x 1 (750mm)
PCI-E cable 1-to-1 x 4 (750mm)
SATA cable 1-to-4 x 1 (400+120+120+120mm)
SATA cable 1-to-3 x 1 (400+120+120mm)
Peripheral cable 1-to-3 x 2 (400+150+150mm)
Addressable RGB cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis screws package x 1
Cable tie x 12
Thank you card x 1
User manual x 1
Weight
2.37 KG (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
