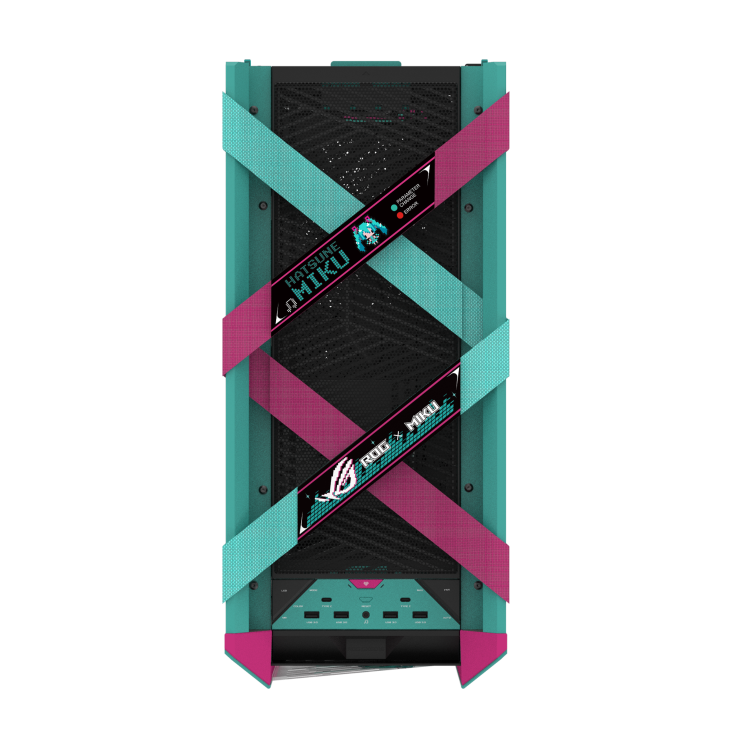

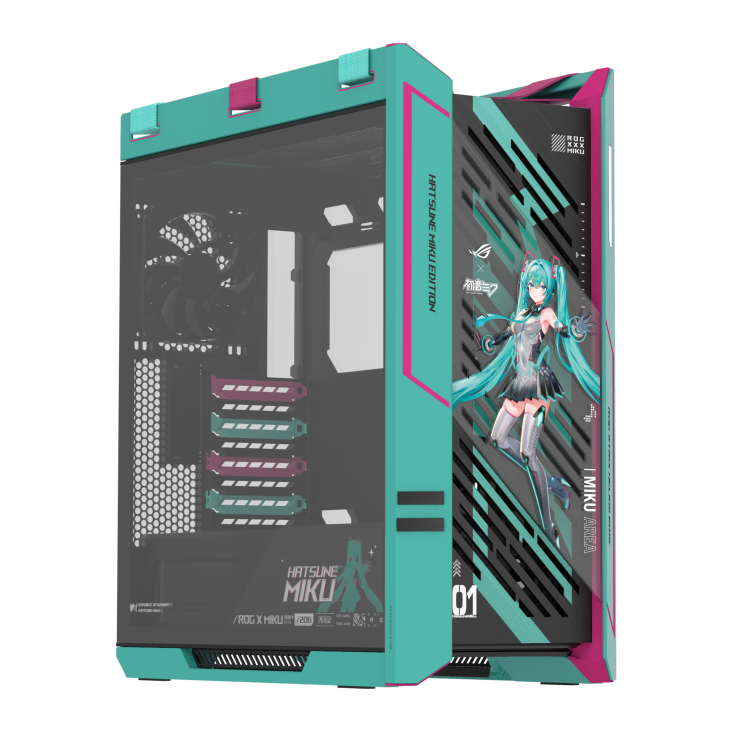

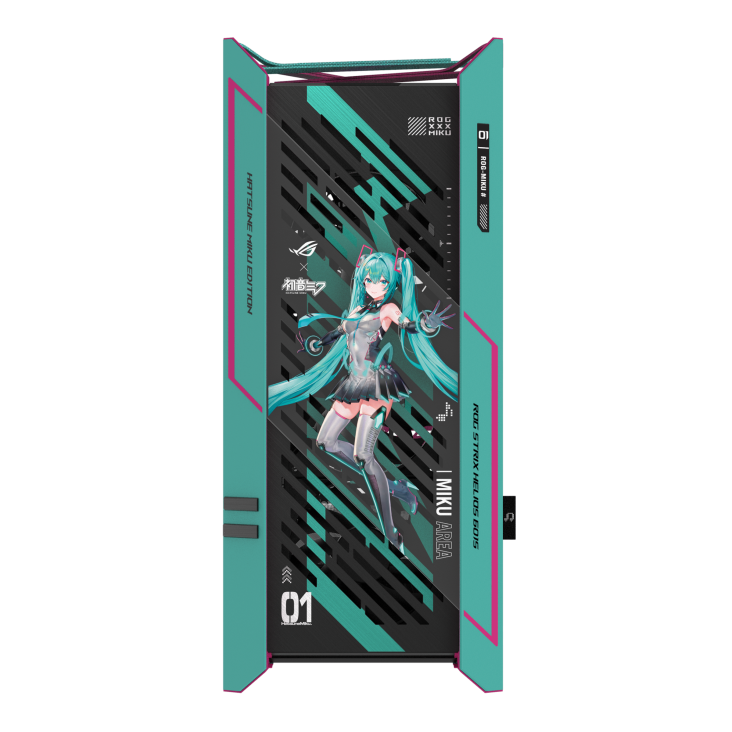

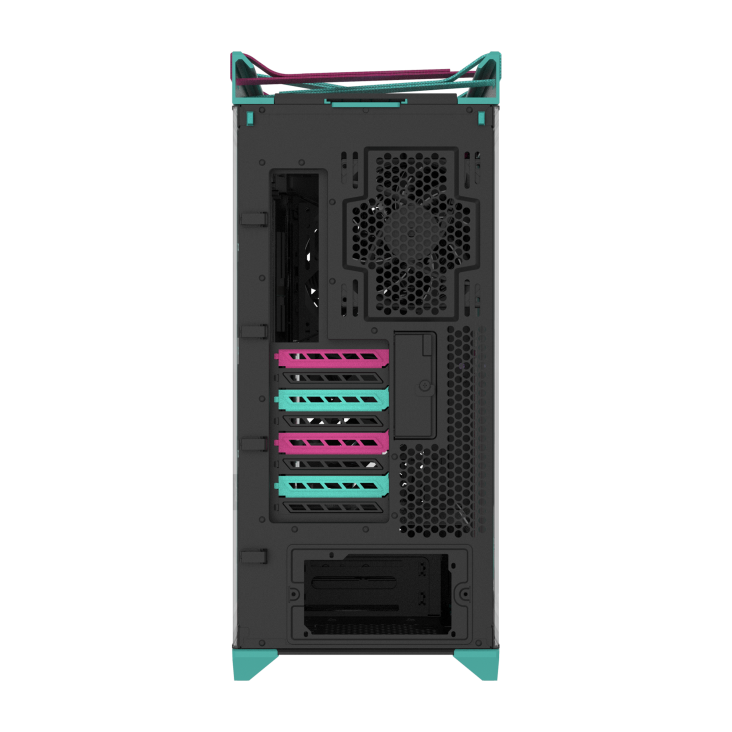

ASUS ROG Strix Helios II Hatsune Miku Edition
Pre-Order
Quick Overview
ROG Strix Helios II Hatsune Miku Edition EATX mid-tower case with glass panels, support for graphics cards up to 450mm long and 420mm radiators, graphics card brace, aluminum frame
- Co-branded edition: Combines unbeatable ROG performance and sci-fi-inspired aesthetics with the signature blue-green and pink Hatsune Miku color scheme
- Premium design: The Helios II Hatsune Miku Edition is made for showcase builds, with aluminum front panel featuring diamond-grille design and 3D-structured filter to support effective cooling
- Optimal thermal performance: Pre-installed four 140 x 28mm performance fans deliver ultimate airflow
- Ready for the DIY experience: PC building is made easy with support for EATX motherboards and graphics cards up to 450mm long, plus a graphics card slot clamp and a rear detachable PSU bracket
- Tidy PC building: Effortless cable management is enabled by a multifunction cover with graphics card holders, a PSU shroud, a cable cover and rear cable clips.
- Advanced I/O panel: This section features two USB 20Gbps Type-C® ports, four USB-A 3.0 ports, an ARGB-lighting control button and a fan-speed PWM control button
- Comfortable case straps: Easily carry your prized build to LAN parties with ergonomic and stylish X-shaped woven straps
Model
ROG Strix Helios II Hatsune Miku Edition
Case Size
Mid Tower
Motherboard Support
EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Drive Bays
4 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Expansion Slots
8
2 (additional vertical)
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen 2x2 Type C
4 x USB 3.2Gen1
Tempered Glass
Front Side
Left Side
Right Side
Radiator Support (Front)
120 mm
140 mm
240 mm
280 mm
360 mm
420 mm
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
140 mm
Cooling Support (Front)
3 x 120 mm
3 x 140 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mm
PWM
Pre-installed Fans (Rear)
1 x 140 mm
Maximum CPU Cooler Height
190 mm
Maximum GPU Length
450 mm
Maximum PSU Length
220 mm
Removable Dust Filters
Front
Top
Bottom
Maximum Cable Management Space
33 mm
Dimensions
250 x 565 x 591 mm
Weight
18Kg
AURA Sync
ARGB
