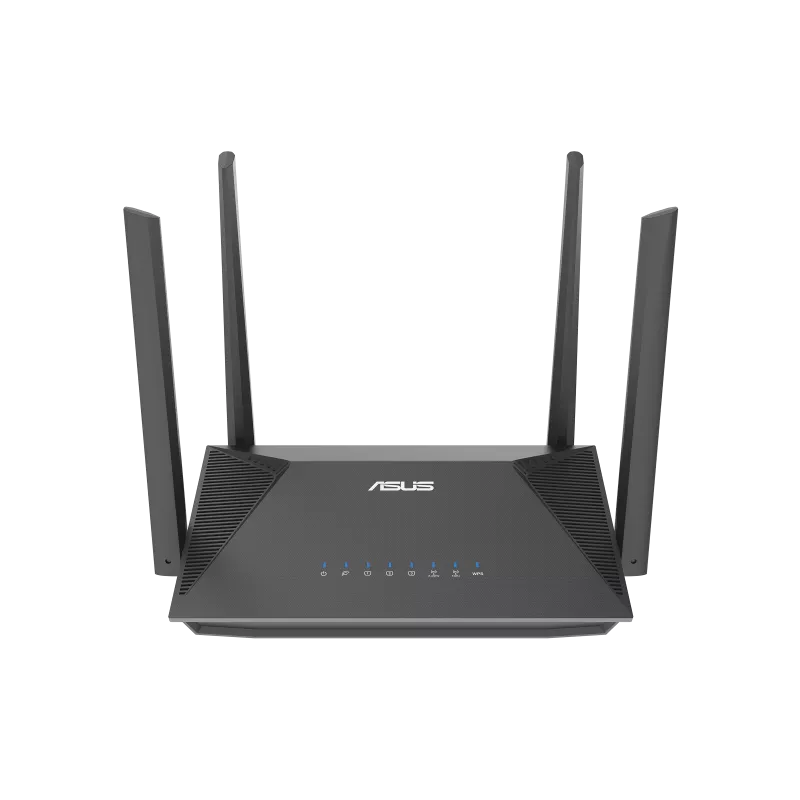

ASUS RT-AX52 (AX1800)

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

External antenna x 4

2.4GHz 2x2
5GHz 2x2

1.3GHz dual-core processor

128 MB Flash
256 MB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

2.4GHz / 5GHz

Access Point, AiMesh Node, Repeater, Router

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

WPS Button, Reset Button, Power Switch

Power x 1
WAN x 1
LAN x 3
2.4G x 1
5G x 1
WPS x 1

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current

．RT-AX52
．RJ45 Ethernet Cable
．Power Adapter
．Quick Start Guide
．Warranty Card

298g

192 x 126.3 x 47.5 mm (WxDxH)

AiMesh
• Primary AiMesh Router
• AiMesh Node

Customized Internet Schedule

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP

• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)

UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
